Industrial Oil Filter Vessels

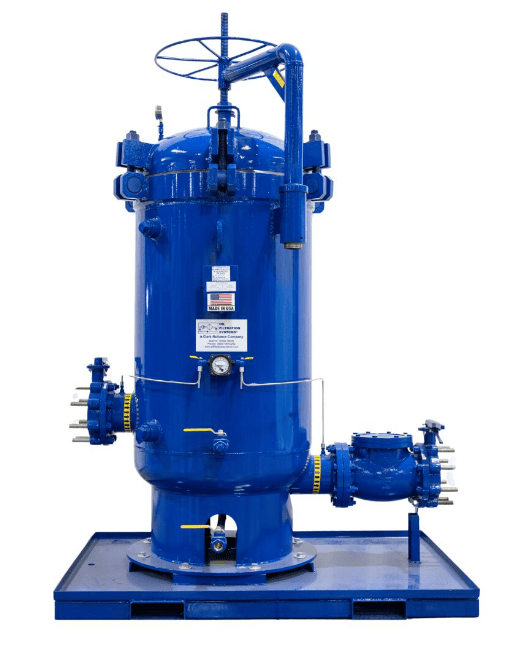

LF-SERIES FILTER VESSELS 6-24
General Description
Industrial Oil Filter Equipment
The LF series filters are constructed of steel and made to handle many kinds of contamination and flow rate requirements. Designed for 150-PSI maximum operating pressure. The inlet and outlet connections are 150 pounds ASA flanges.
The LF-Series, 6 through 24, is easily installed and interchangeable with element types from 1/2 to 25 microns.
Standard LF-Series, 6 - 24
- 2 Pressure Gauges
- Element Stand Pipes
- Lifting Davits
- Drain Outlets
- Vent Openings
Accessory Items
- Pressure Relief Valves To Handle Thermal Expansion
- Differential Pressure Gauges
- Automatic Air Eliminators
- Immersion Heaters
- Liquid Level Gauges
- Multi-port Valves For Dual Installation
- Portable Skids
- Pumps And Motors
- ASME Code Certified
Applications
- Hydraulic Oils
- Turbine Oils
- Diesel Fuels
- Fuel Oils
- Full Flow Lube Oil
- Aviation Fuels
- Insulating Oils
LF-1 & 2 SERIES FILTER VESSELS

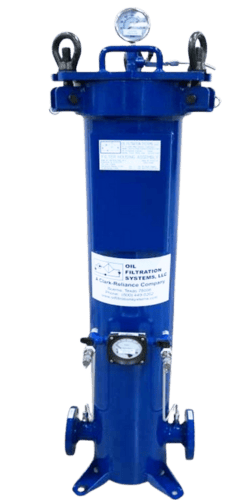

MODEL LF-1 FILTER VESSEL
LF-1 Holds ( 1 ) 6” x 18” Element
LF-2 Holds ( 2 ) 6” x 18” Elements
Or ( 1 ) 6” x 36” Element
General Description
The LF-1 and LF-2 Series are constructed of steel and designed for a 150 PSI maximum operating pressure. The LF-1 & LF-2 easy to remove covers allow for quick and convenient element change out.
The LF-1 and LF-2 Series are economical and can perform a variety of oil filtration needs, depending on the type of element you choose to install.
- Pleated Paper Filtration – Granular contaminants from ½ micron to 25 micron.
- High Performance Microglass Media. Beta Rated
- Disc-PAC-Type Filtration – Removal of acids, additives, and inhibitors from oils.
Applications
- Hydraulic Oils
- Engine Oils
- Diesel Fuels
- Fuel Oils
- Full Flow Lube Oil
- Aviation Fuels
- Insulating Oils
- Turbine Oils
- Rolling Oils
- Quench Oils
